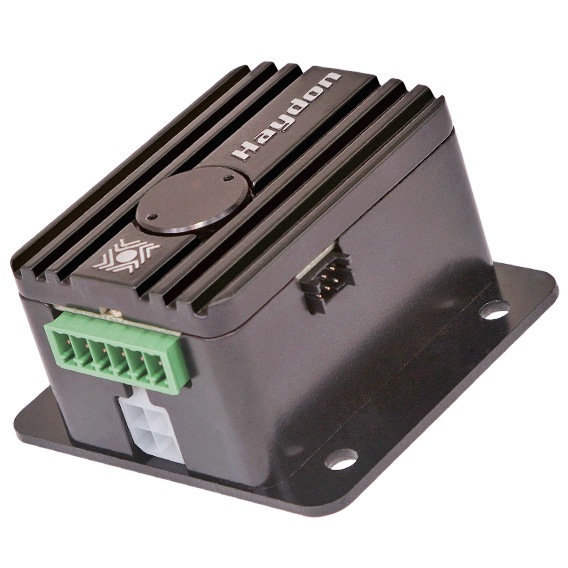

The Haydon Kerk DCM4826 IDEA Stepper Motor Drive is ideal for controlling both rotary stepper motors and stepper motor based linear actuator systems using a simple “pulse”, “direction”, and “enable” signal from a stepper motor control board. Input voltage to the drive is 12-48 VDC. The stepper motor drive can provide a load current of 2.6A rms per phase. The PDE signals are optically isolated from the rest of the drive, providing the ability to reference a separate electrical ground.
Features :
- RS-485 Communication protocol
- Selectable step modes – Full, ½, ¼, 1/8, 1/16, 1/32, 1/64
- Simple PDE interface for parameter setting
- Maximum current ratings of 2.6 Arms

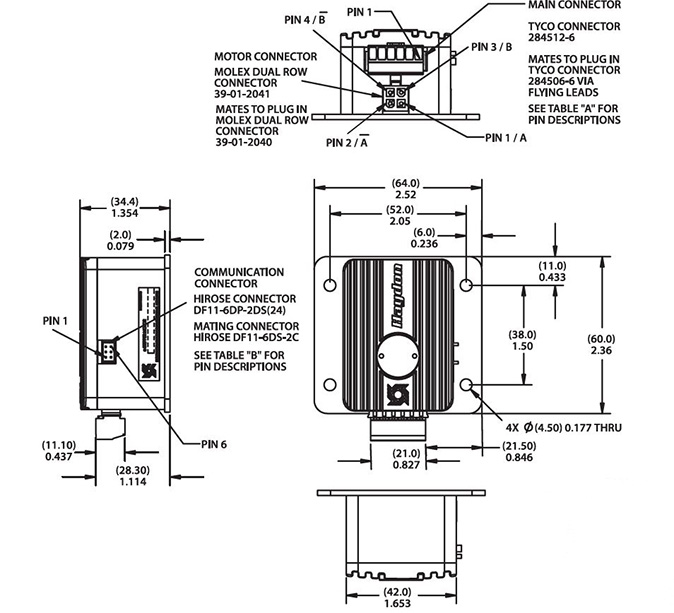

- Compact Size: 2.36 in x 2.52 in x 1.35in (60 mm x 64 mm x 34.4 mm)
